DOCUMENTATION
Alven is an investment in your well-being. To enjoy the full functionality of Alven and discover different light recipes, we recommend that you have a read through our documentation. Click on the buttons above to download the PDFs. You can also find a summary of the technical specifications further down on this page.



Technical specifications
Light properties
Light source type
Optimized LED
LED color temperature
6500K – 2700K
Color rendering
CRI Ra > 90
Lumen output
6400 lm
Beam angle
110°
Flicker handling
Compliant with IEEE1789
Motion detection
PIR
Power properties
Maximum rated power
120W
Supply voltage range
20-250V
Supply power frequency
50/60 Hz
Efficiency LED driver
>90%
Power supply
Wall plug
Mechanical properties
Colors
White matte
Material
Aluminum + PMMA
Lifespan
50 000 hours
Configuration
Floor standing, backlit LED
IP rating
41 – For indoor use only
Certifications
CE, FCC
Measurements / packaging
Weight (kg)
22
Size (mm)
680 x 709 x 1912
Box quantity
3
Boxed size (mm)
1: 690 x 609 x 10
2: 723 x 723 x 163
3: 1978 x 167 x 107
Boxed weight (kg)
24
Examples of areas of use

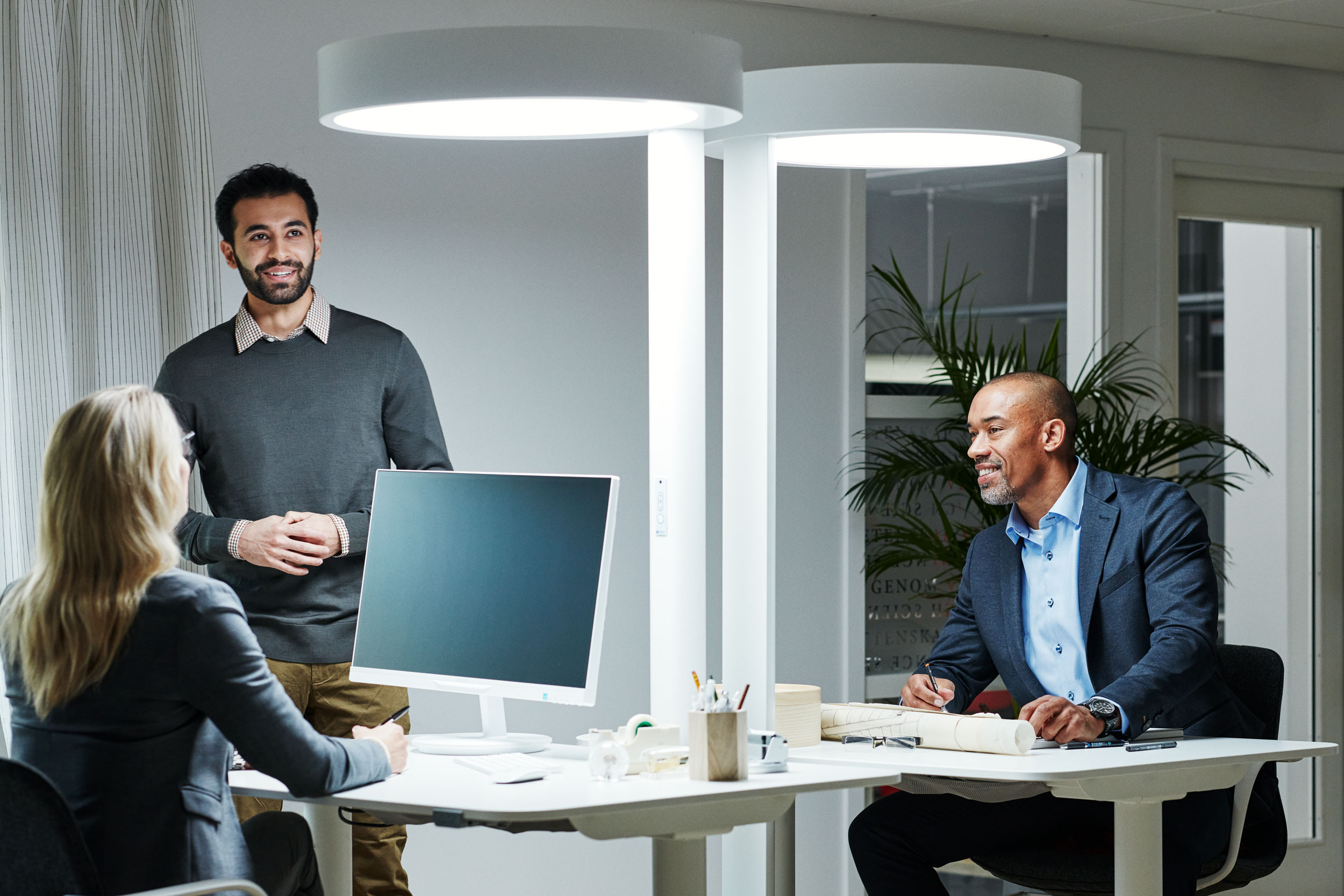

Office

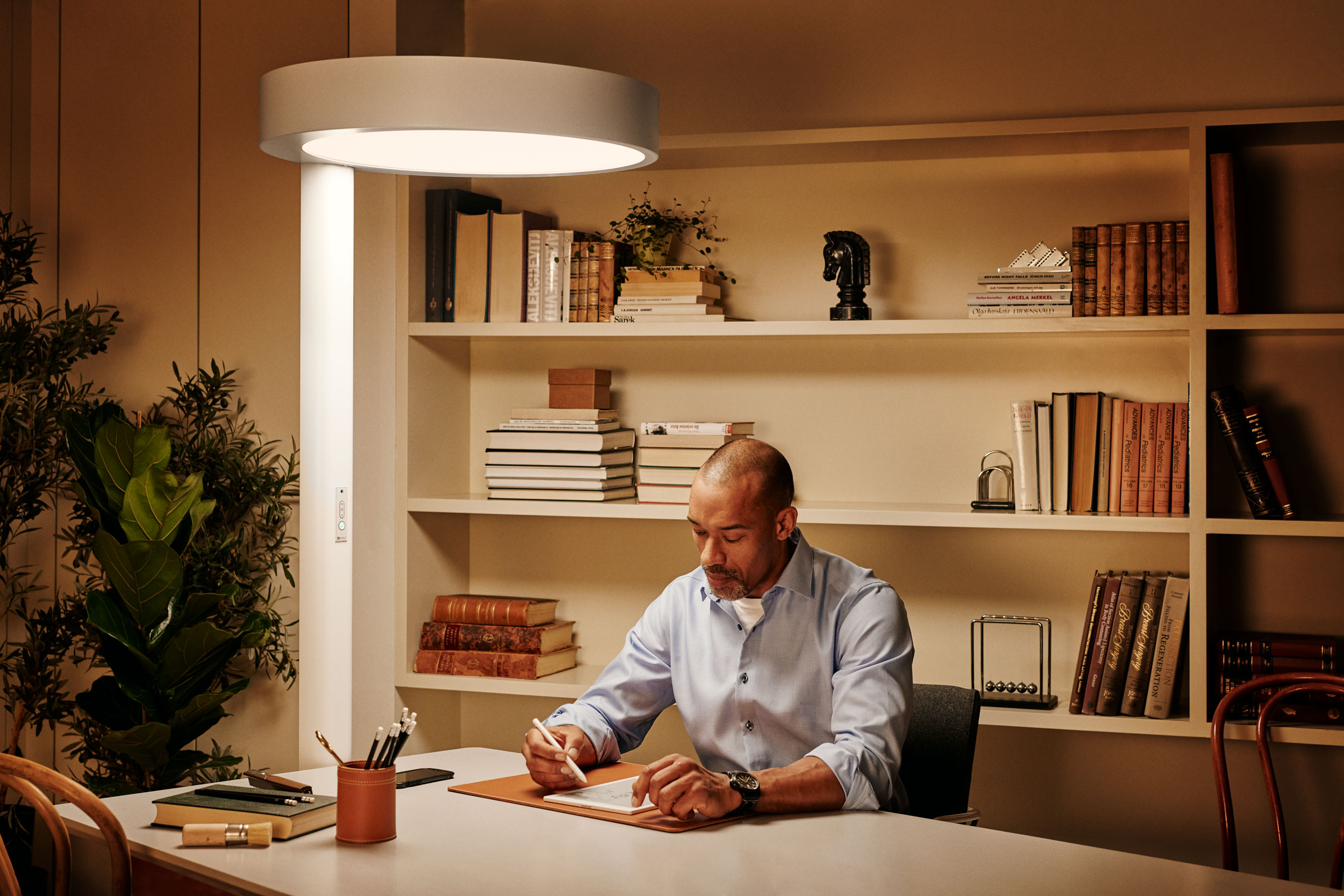

Corporate / Home offices / Meeting & Seminar rooms
Industrial
Control rooms
Education
Conference centers / Classrooms
Hospitality
Customer interaction centres / Receptions / Terminals / Conference centres / Lounges / Premium room settings
Healthcare
Wards / Long term care / Dialysis centres
Residential

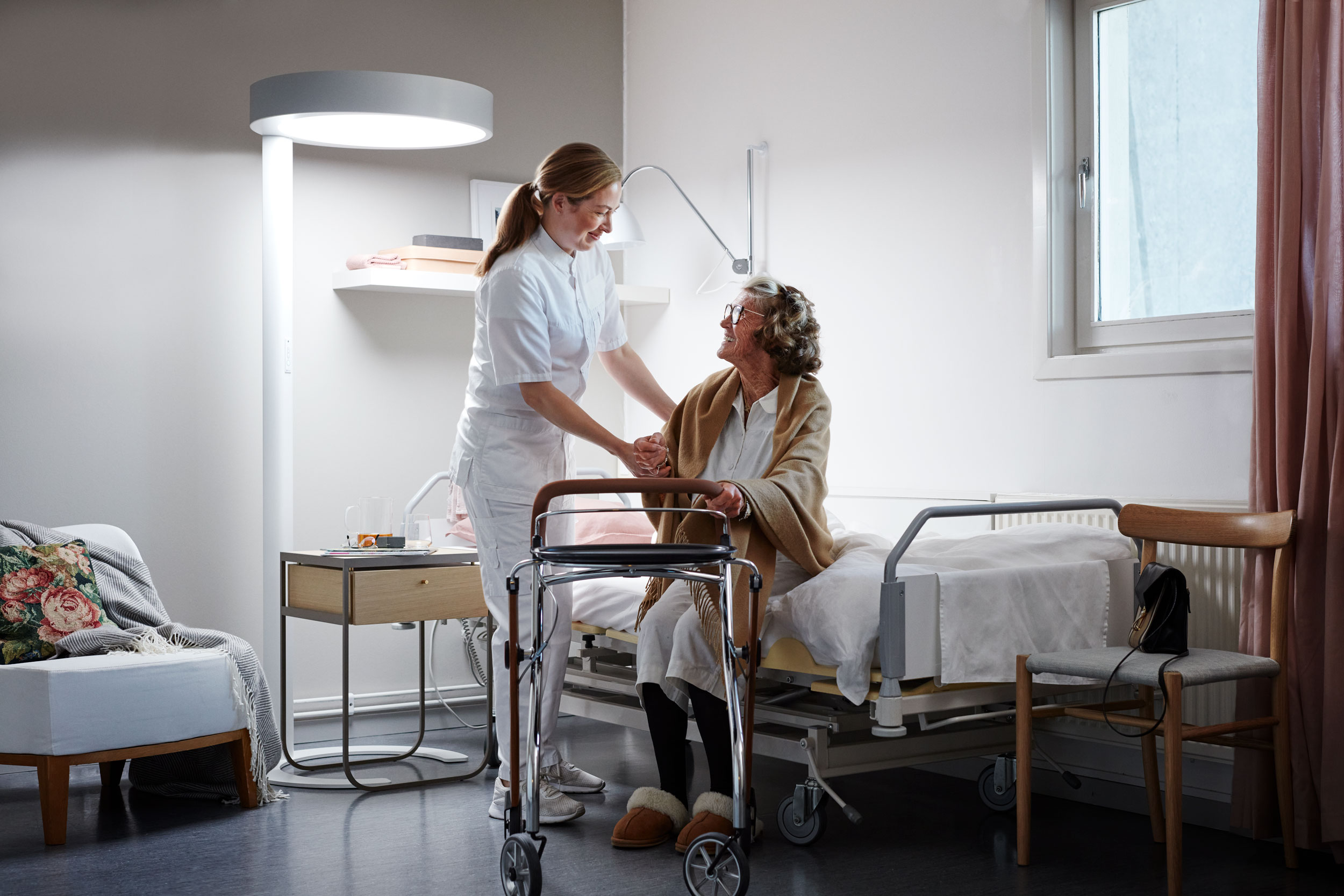

Nursing homes / Elderly care / Luxury room settings
Market availability
EMEA
EU
AMERICAS
TBD
APAC
TBD
